The Apera Instruments EC8500 Portable pH/Conductivity/TDS/Salinity Meter Kit is designed for lab-grade conductivity measurement in the field with various intelligent functions and a rugged structure.

Instrument Features

  • GLP Data management (1000 groups of data storage), USB data output.
  • Ideal for use in harsh environments — IP57 Waterproof rating, silicone socket protector and grip cover protect the instrument from general impact.
  • The large backlit LCD displays conductivity/TDS/salinity and temperature along with icons of stable readings and finished calibrations.
  • The foldable stand allows use as a benchtop meter.

Conductivity Features

  • The BPB 2301T-S Conductivity/Temperature Electrode adopts a brush-resistant platinum black coated sensor, which ensures a lab-grade measuring accuracy (±1% F.S ±1 digit) in an ultra-wide range (0 to 200,000 µS/cm / 200 mS/cm).
  • Single-tap switch among conductivity, TDS, and salinity.
  • Quick and easy 1-3 point conductivity calibration with functions of calibration reminder and last calibration check.
  • Built-in self-diagnosis ensures conductivity calibration will be performed correctly and guides you on how to fix common problems.
  • TDS conversion factor can be set from 0.40 to 1.00.

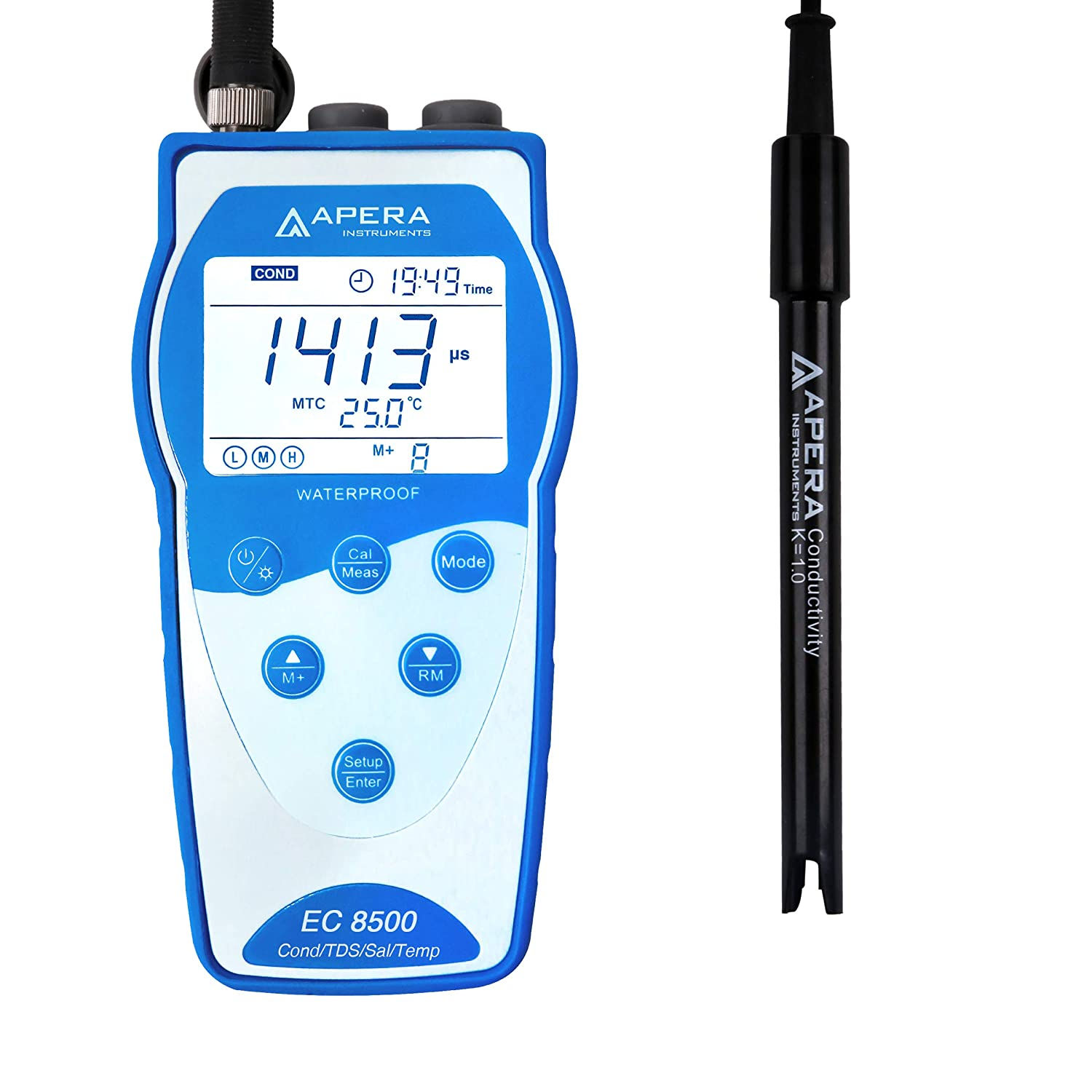

        EC8500 Portable Conductivity/TDS/Salinity Meter Kit with Data Logger&USB Output

        • Conductivity

          • Measuring Range: 0~200 mS/cm, divided into five ranges, automatically switch measuring range. (0 to 19.99) μS/cm; (20.0 to 199.9) μS/cm;  (200 to 1999) μS/cm; (2.00 to 19.99) mS/cm; (20.0 to 199.9) mS/cm;TDS: (0 to 100) g/L; Salinity: (0 to 100) ppt
          • Resolution: 0.01/0.1/1μS/cm  0.01/0.1 mS/cm
          • Accuracy: ±1.0% FS ±1 digit
          • Temperature Compensation Range: (0 to 50)˚C (Auto. or Manual)
          • Cell constant: 0.1/1/10 cm-1

          Temp.

          • Measuring Range: 0 to 100℃
          • Resolution: 0.1℃
          • Accuracy: ±0.5℃±1 digit

          Other

          • Data Storage: 500 groups
          • Storage Content: Numbering, measuring value and temperature value, data and time
          • Power: 3* AA alkaline batteries
          • Dimension & Weight: Meter: (88*170*33)mm / 313g; Case: (360*270*76)mm / 1.6kg
          • Connector: RCA for temperature, 8-pin for conductivity
