  • Highest accuracy: ±0.002 pH± 1 digit; ±0.5% FS± 1 digit in conductivity
  • The Swiss LabSen 211 Combination pH Electrode and Precision BPB 2401T-F Glass Conductivity Electrode ensure highly stable & accurate pH and conductivity measurements
  • Quick and Easy auto calibration up to 5 points with calibration guide and reminder function (premixed standard solutions included)
  • Slope display between calibrations helps you monitor the health of your pH electrode
  • The large clear backlit LCD displays EC/pH and temperature simultaneously along with icons of stable readings and finished calibrations.
  • GLP Data management (500 groups of data storage) with USB data output

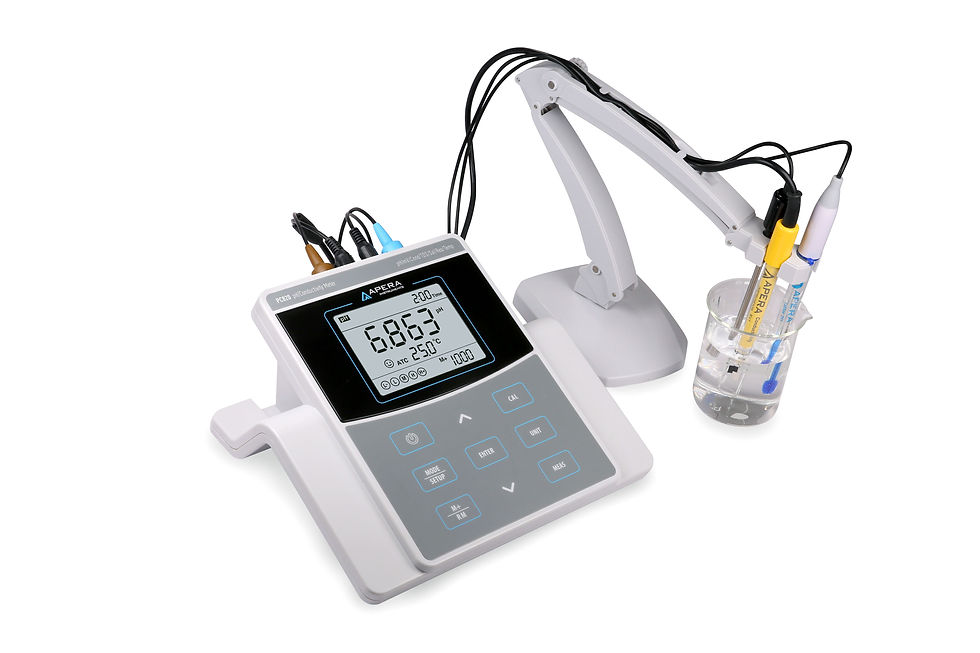

The Apera Instruments PC820 Benchtop pH/Conductivity Meter provides reliable pH and conductivity measurements with various intelligent functions and a durable structure. Equipped with Swiss LabSen 211 Combination pH electrode and Precision BPB (Brush-Resistant Platinum Black) glass conductivity electrode (2401T-F), the meter measures pH/EC/TDS/Salinity/Resistivity/Temperature in a stable and accurate manner. ORP (Redox) measuring mode available (ORP electrode sold separately).

Equipped with the LabSen 211 Combination pH Electrode made with Swiss sensor technologies and materials, featuring an impact-resistant and bubble-free sensor tip, and a long-life reference system; compatible with TRIS buffer.

Intelligent Functions:

Quick & Easy Auto Calibration up to 5 points. The Smart Self-Diagnosis helps you conduct proper calibrations and monitor the condition of your probes with slope data display between calibrations. Calibration reminder and date check functions are also available. The large clear backlit LCD displays pH/EC/TDS/Salinity/Resistivity and temperature simultaneously along with icons of stable readings and finished calibrations.

GLP Data management (1000 groups of data storage), USB data output and PC software support. Auto timing measurement/data logging mode available.

Reliable Structure:

IP54 water-resistant. It comes with a complete test kit including a meter, a pH electrode, a conductivity electrode, a temperature probe, a flexible electrode holder, a PC-Link software flash drive (Windows-based system only), a USB cable, a power adaptor (input: 120V AC 60Hz; Output: 9V--300mA), and 6 bottles of calibration solutions (4.00 pH, 7.00 pH, 10.01 pH, 84μS/cm, 1413μS/cm, 12.88mS/cm). The product is CE certified and comes with a Three-Year Warranty for the meter, and a 6-Month warranty for the electrodes.

PC820 Precision Benchtop pH/Conductivity Meter Kit

  • pH Electrode: LabSen 211 Premium pH Electrode

    • Measuring Range: (-2.000 to 19.999) pH
    • Resolution: 0.1/0.01/0.001 pH
    • Accuracy: ±0.002 pH ±1 digit
    • Input Current: ≤1x10-12A
    • Input Impedance: ≥3x1012Ω
    • Stability: ±0.002 pH/3h ±1 digit
    • Temp. Compensation Range: 0 to 100°C (32 to 212°F) Auto or Manual

    mV

    • Measuring Range: ±1999.9 mV
    • Resolution: 0.1 mV
    • Accuracy: ±0.03% F.S ±1 digit

    Conductivity Electrode: 2401-C Glass Conductivity Electrode

    • Measuring Range Conductivity: 0 to 2000 mS/cm, include: (0.00~19.99) μS/cm (20.0~199.9) μS/cm (200~1999) μS/cm (2.00~19.99) mS/cm (20.0~199.9) mS/cm (200~1999) mS/cm
    • TDS: (0 to 100) g/L
    • Salinity: (0 to 100) ppt
    • Resistivity: (0 to 100) MΩ?cm
    • Resolution: 0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
    • Accuracy: ±0.5% F.S ±1 digit
    • Temp. Compensation Range: 0 to 50°C (32 to 122°F) Auto or Manual
    • Electrode Constant: 0.01/0.1/1/10 cm-1

    Temperature Electrode: MP500 Temperature Electrode

    • Measuring Range: -10 to 110°C (14 to 230°F)
    • Resolution: 0.1°C
    • Accuracy: ±0.4°C ±1 digit

    Others

    • Data Storage: 1000 Groups
    • Storage Content: Numberings, Date, Time, Measurements, Unit, and Temperature
    • Data Output: USB
    • Power Supply: Input: 120V AC 60Hz; Output: DC9V/300mA, 2.7VA
    • IP Rating: IP54 splash-proof and dust-proof
    • Dimensions and Weight: with box: (10*10*7) inches / 7.5 pounds approx.
  • We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at the option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to the responsibility of APERA INSTRUMENTS, LLC for a period of THREE YEARS for the instrument and SIX MONTHS for the probe from the delivery.

    This limited warranty does NOT cover any issues due to:

    • Accidental damage
    • Improper use
    • Normal wear and tear
    • Transportation
    • Storage
    • Failure to follow the product instructions
    • Unauthorized maintenance, modifications, combination or use with any products, materials, processes, systems or other matter
    • Unauthorized repair
    • External causes such as accidents, abuse, or other actions or events beyond our reasonable control.
